Digicon grips & fixtures — four product examplesUTM grips and fixtures must suit the specimen dimensions, required force range, testing direction and applicable method. Digicon can review your requirement and suggest a suitable fixture configuration.

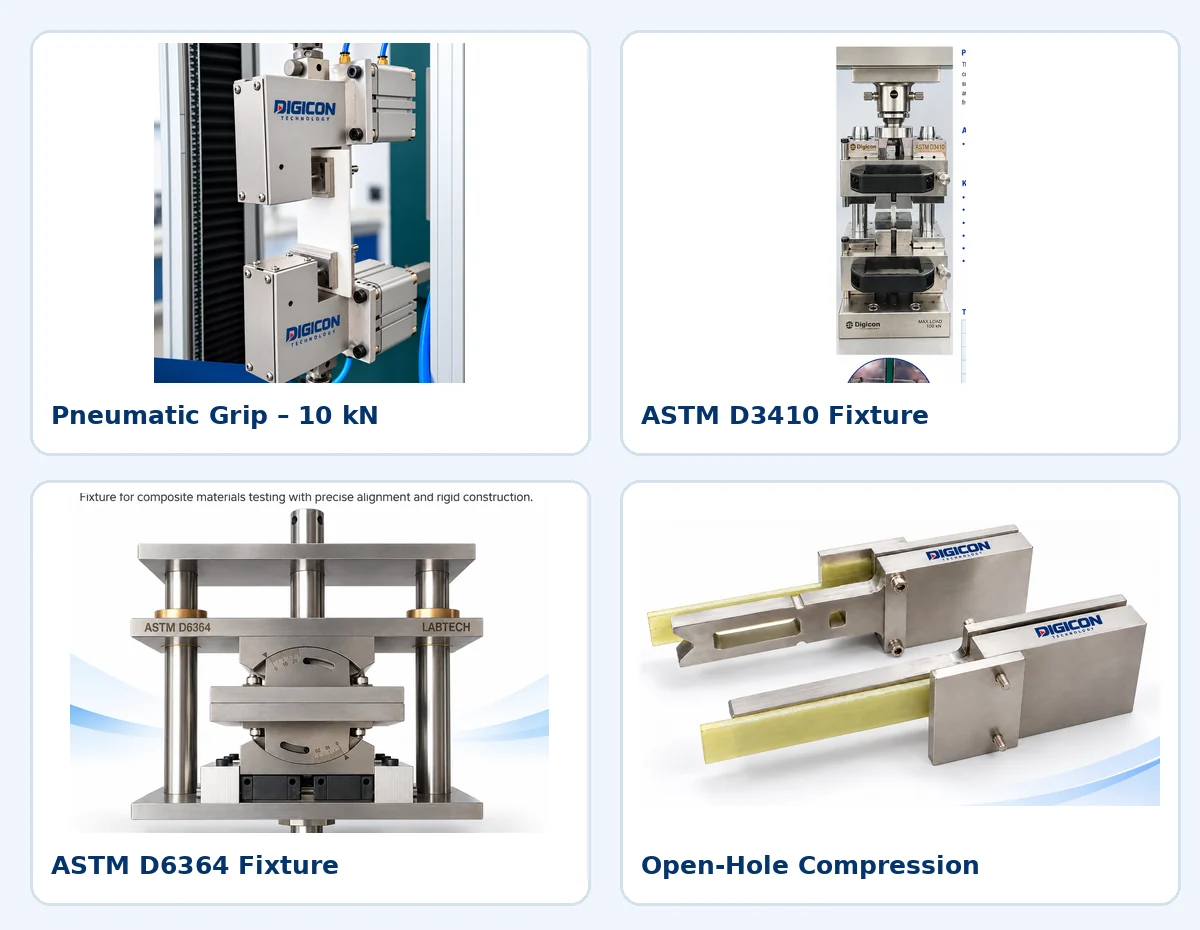

The four photographs show example fixtures. Dimensions, capacities and compatibility are confirmed for each enquiry.
Digicon DG-CF-100 · Maximum capacity 100 kN · For composite material compression specimens.
Select the closest application and send your sample details. These are enquiry categories, not confirmed stock items.
Photographs and applications; detailed compatibility and design specifications are confirmed on enquiry.

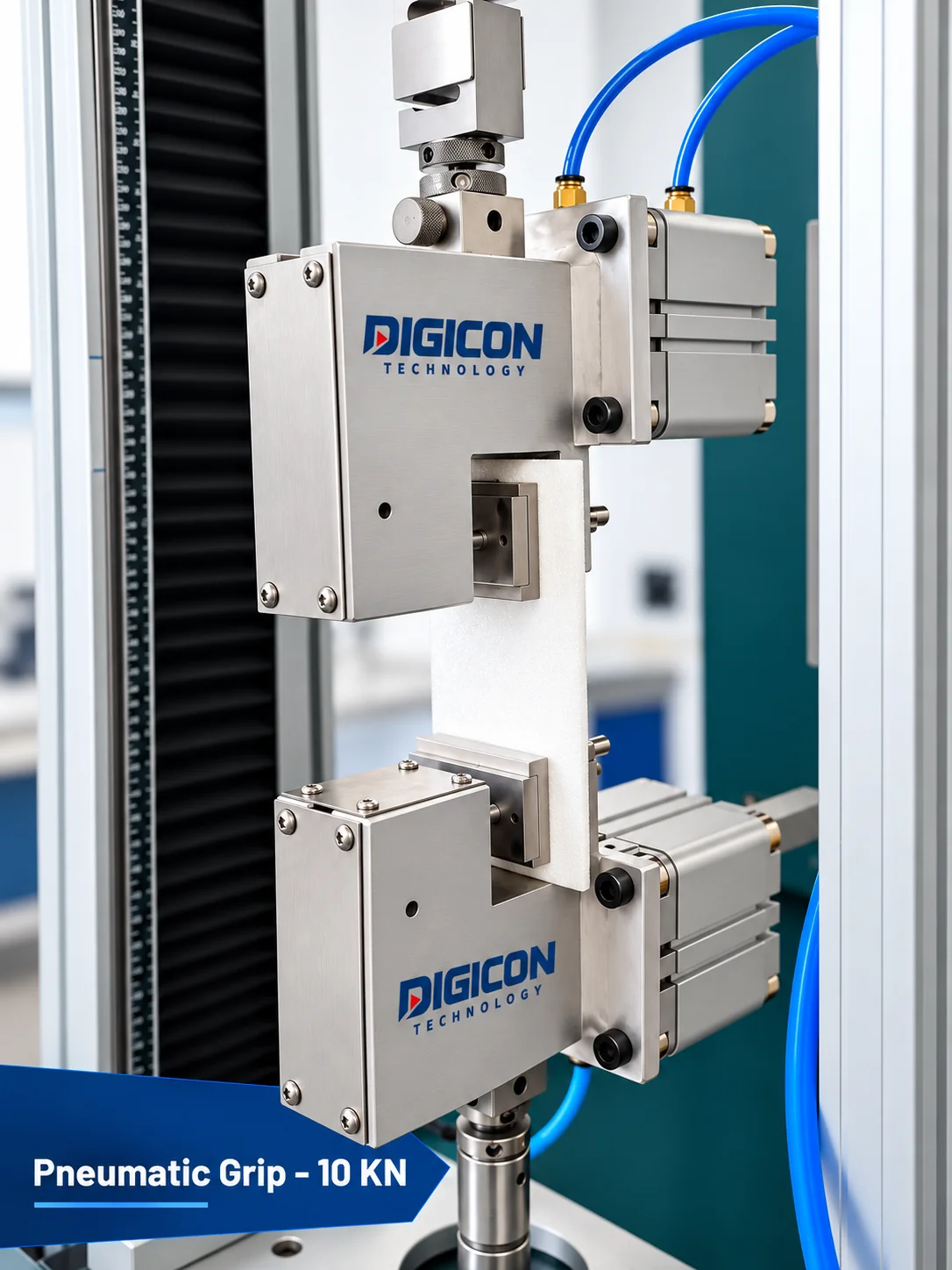

Pneumatic Grip - 10 kNAir-operated grips for holding suitable tensile specimens in a universal testing machine. Nominal grip capacity 10 kN; jaw faces, specimen dimensions, air pressure and machine interface require confirmation.
Request quotation →

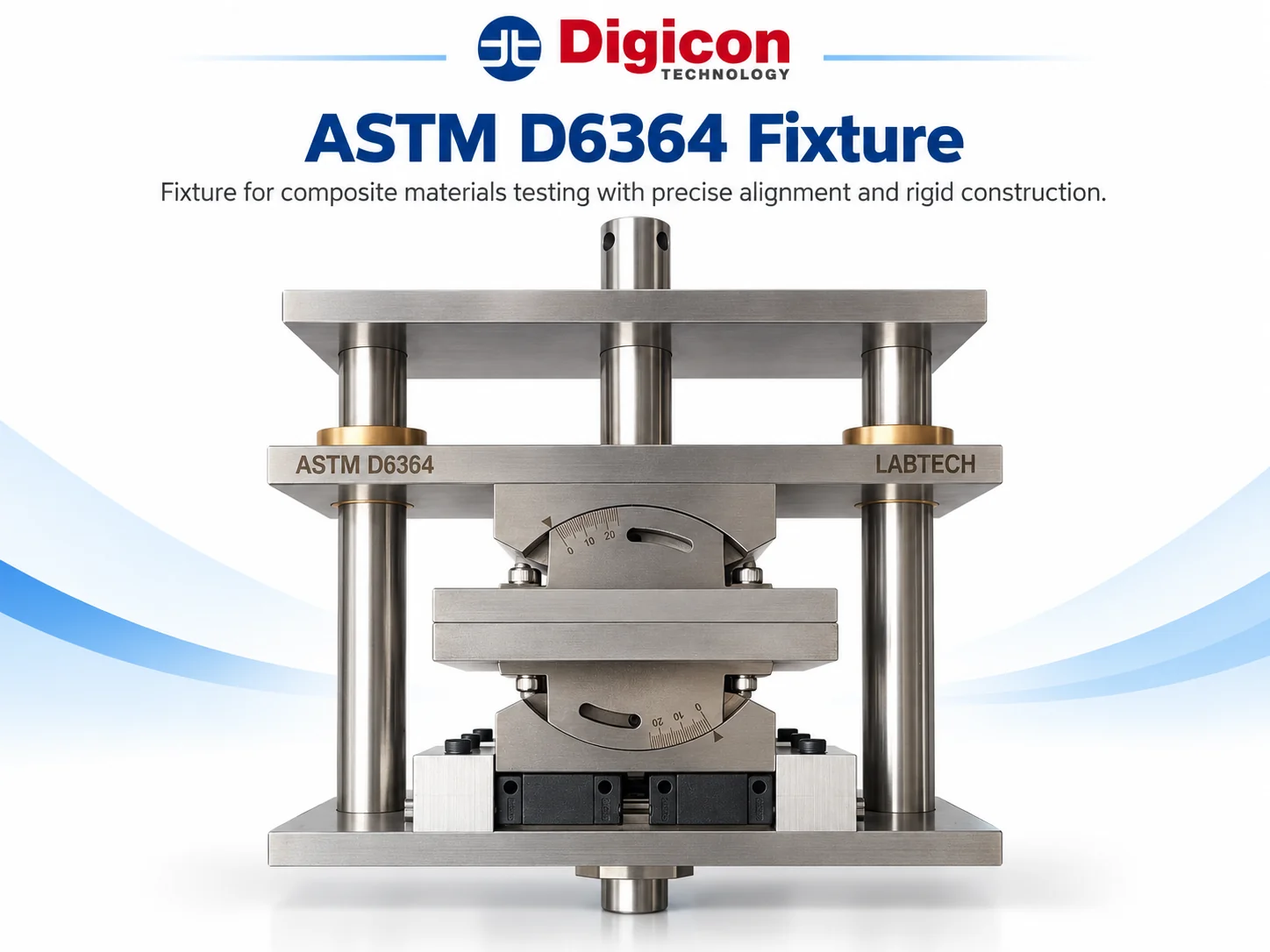

ASTM D6364 FixtureFixture arrangement used in evaluating in-plane shear response of polymer matrix composite materials. Geometry and set-up are configured for the test method and the selected testing machine.
Request quotation →

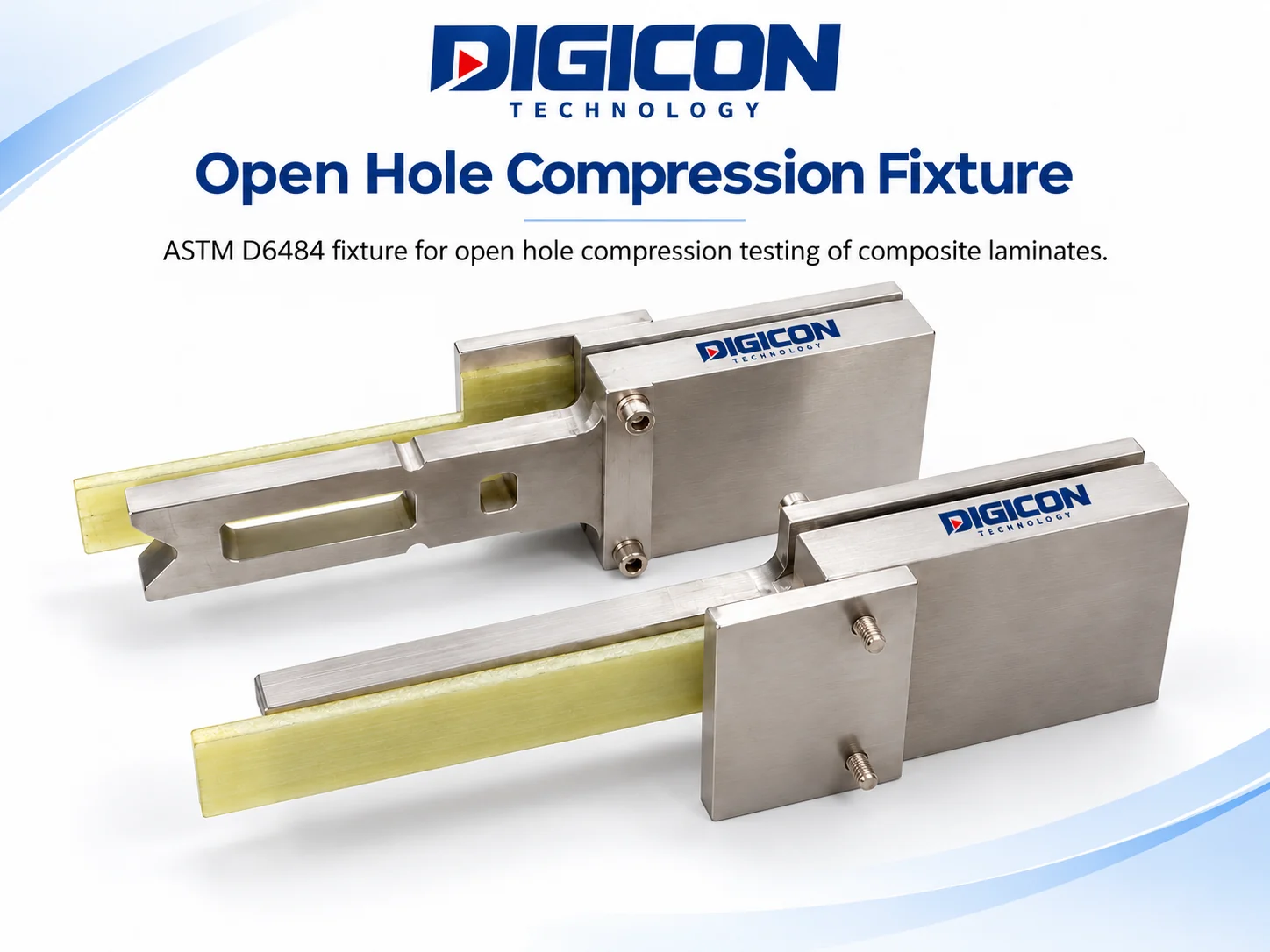

Open-Hole CompressionFor compression testing of composite laminates containing an open hole; reference method ASTM D6484. Specimen support and end-loading requirements depend on the approved method.
Request quotation →
ASTM C297 FixtureTest fixture for flatwise tensile strength of sandwich constructions. Note: ASTM C297 is a flatwise tensile test, not a shear test. Confirm if a separate sandwich-core shear fixture is also required.
Request quotation →Search the 444 reference entries from Digicon's supplied workbook. The standard alone may not determine the grip or fixture.
Reference directory only. Standards listed are not an assertion of fixture availability, certification, or compliance. Confirm current standard revision and fixture suitability before ordering.
Share the test standard, material, specimen dimensions, machine capacity and existing grip-interface details.
